2t/H Mango Juice Processing Machine 300 - 500ml Bottle Packing

  • 2t/H Mango Juice Processing Machine 300 - 500ml Bottle Packing
Place of Origin china
Brand Name sss
Model Number customized
Product Details
Item Name 2t/H Raw Mango 300-500ml Bottle Mango Juice Processing Machine Input Fresh Mango
Output Mango Juice Capacity 2t/h
Product Packing Bottle Feature Turnkey Projetc
High Light

500ml Bottle Mango Juice Plant Machinery

,

Mango Juice Processing Machine 2t/H
Leave a Message
Product Description

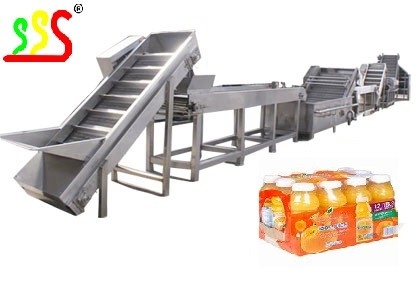

2t/h raw mango 300-500ml bottle mango juice processing machine



2t/h raw mango 300-500ml bottle mango juice processing machine consists of mango pretreatment unit, pulping machine unit,juice making unit,packing unit and control system.



15
Dissolving sugar and auxiliary material system
Ø Rated capacity: 200L;
Ø Three-layer jacket structure, middle polyurethane foam insulation, steam heating
Ø Steam valve group: drain valve, filter, pressure reducing valve, angle seat valve, steam trap, globe valve, etc.
Ø Including manhole, breathable cap, cleaning ball, water inlet, material inlet and outlet, sampling valve, glass sight tube;
Ø The surrounding R-shaped arcs are excessive and have no dead ends, and the mixing is more uniform;
Ø Sugar melting time: about 5-20min/time, the specific time needs to be determined according to the characteristics of different
materials;
Ø High-speed stirring at 2800rpm;
Ø Variable frequency speed regulation
Ø Power 7.5KW;
Ø For quick dissolution of excipients and sugar
16
Material pump
Ø Flow: 1M3/H;
Ø Head 24m;
Ø Stainless steel material
Ø Power: 0.75kw
17
Duplex filter
Ø Rated flow: 1T/H
Ø Filtration precision: 30um-1mm (optional standard specification)
18
Mixing tank + operating platform
Ø Capacity: 500L
Ø 304 stainless steel material;
Ø Double-layer upper and lower cone-bottom structure; inner wall 2.5mm, middle 50mm polyurethane foam, outsourcing 1.5mm
Ø Paddle stirring;
Ø The outer surface adopts wire drawing board;
Ø Liquid level pipe, temperature gauge;
Ø Conical top and cone bottom structure, cone bottom 15℃, including manhole, vent cap, cleaning ball, water inlet, material inlet
and outlet, sampling valve, glass sight tube;
Ø The inlet and outlet adopt anti-foam and anti-swirl structure;
Ø Variable frequency speed regulation
19
Material pump
Ø Flow: 1M3/H;
Ø Head 24m;
Ø Stainless steel material
Ø Power: 0.75kw
20
Duplex filter
Ø Rated flow: 1T/H
Ø Filtration precision: 30um-1mm (optional standard specification)
21
CIP return pump
Ø 10T/H
Ø With self-priming function
22
Control system
Ø Siemens PLC, touch screen
Ø The cabinet is made of 304 stainless steel;
Ø Schneider Omron low voltage components
Ø AirTAC Pneumatic Components
23
Homogenizer
Ø Pressure: 0-30Mpa
Ø Output: 500L/H
Ø Pressure control adopts two-pole mechanical pressure regulation, which is convenient to adjust, safe and reliable;
Ø Plunger adopts wear-resistant alloy, sprayed alloy and new ceramic technology, which has the characteristics of corrosion
resistance and wear resistance;
Ø The high-pressure seal of the plunger adopts the form of self-expanding ring and V-shaped seal, which has a long service life;
Ø Crankshaft transmission adopts one-stage transmission mode, with stable operation, small power loss and low noise;
Ø The main parts are made of stainless steel and corrosion-resistant alloys, which meet the requirements of food hygiene;
24
Vacuum Degasser
Ø Output: 500L/H
Ø Made of 304 stainless steel 4mm;
Ø Using high-end vacuum pump to achieve vacuum in the tank;
Ø Vacuum pressure can be displayed;
Ø Material conveying adopts rotor pump
Ø Amount of cooling water: 0.1-0.2T/H;
Ø Installed capacity: 3.75KW
Ø CIP cleaning head, liquid level display, drain valve, feed port
25
UHTTubular Sterilizer
Ø Special tubular structure, specially used for juice materials;
Ø Production capacity: 0.5T/H;
Ø Material inlet temperature: 40℃~50℃;
Ø The material outlet temperature is less than 40℃;
Ø Sterilization temperature: 95℃~121℃;
Ø Sterilization time: 10S;
Ø Cooling water temperature <30℃
Ø The main features of the system are as follows:
Ø Rated processing capacity
Ø Cooling water consumption: 30 tons/hour, the water temperature is less than 30 degrees Celsius;
Ø Steam consumption: 150kg/H
Ø Compressed air; 1m3/min
Ø Installed capacity: 3.3KW,
Ø System pressure: about 50BAR
Ø One screw pump, one hot water pump, one CIP pump
Ø Front 100L material buffer tank;
Ø Plate Heat Exchanger, sealed water tank with sterilization pump
Ø Independent control cabinet, IP protection, man-machine interface PLC
Ø Siemens PLC, Siemens touch screen
Ø Schneider, Omron low voltage components, Japan Fuji temperature controller
Ø Taiwan AirTAC pneumatic components
Ø Steam valve group: pressure reducing valve, filter, regulating valve, globe valve, steam trap





2t/H Mango Juice Processing Machine 300 - 500ml Bottle Packing 0

2t/H Mango Juice Processing Machine 300 - 500ml Bottle Packing 1
