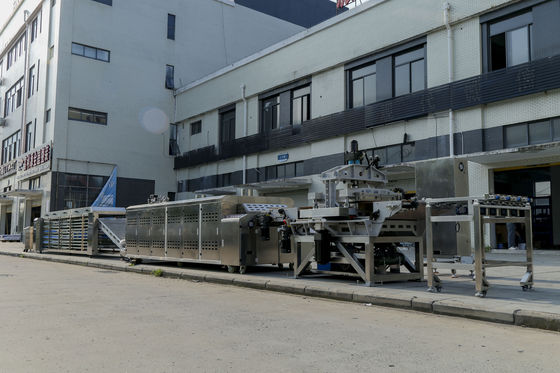

304 Stainless Steel ISO tortilla making production line Lavash Production Line
|Dimension||26000 X 2030 X 1915 (mm)/customized||Warranty||1 Year|
|Keywords||TORTILLA, CHAPATI, PITA BREAD, MEXICAN BREAD||Raw Material||FLOUR|
|After-sales Service Provided||Field Installation, Commissioning And Training||Advantage||Simple Operation|
|Final Product||Tortilla ,chapati,roti,bread,pazzi||Power||21kw|
Intellectualization Lavash Production Line,
Stainless Steel Lavash Production Line,
ISO Chapati Making Machine
Grain Products Tortilla Making Machine /Flat Bread Production Line /Mexican Tortilladora Making machine
1. Automatic conveying of dough ball to haydraulic heating forming chamber.
2. Hydraulic pressing system perfectly to press dough ball into flat tortilla.
3. Baking oven conveyor belt is made of teflonnn which prevent tortila surface from sticking on conveyor belt.
4. Running in a high automatization and intellectualization,no pollution.
5. 3*6 meters cooling line.
|total running power||21kw|
|dimension||26000 x 2030 x 1915 (mm)|
1. The roller consists of first rolling component, second rolling component, third rolling component, rolling mechanism, and conveying mechanism.
2. The dough divider is composed of knife assembly, conveying mechanism and dividing device.
3. The conveying table is composed of conveying mechanism.
4. The press machine consists of upper and lower heating plates, hydraulic mechanism, high temperature conveyor belt and conveyor chain.
5. The oven consists of electric heating tube, chain plate, and conveyor chain.
6. The cooling conveyor consists of cooling chain, conveying motor, and cooling fan.
7. The counter stacker consists of photoelectric counting mechanism, conveying mechanism and pneumatic device.
2. Microcomputer control, easier to operate.
3. Can produce products with different sizes.
4. Accurate positioning.
5. High-quality stainless steel and food-grade polymer materials are used in contact with food.
We will ship the machine as per customers' request; either by sea, by air, or by truck.
