Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha

Place of Origin China
Brand Name SSS
Certification CE ISO
Model Number SSS-PT-6000
Minimum Order Quantity 1 set
Price 50000-80000
Packaging Details Wooden case
Delivery Time 45 days
Payment Terms L/C, D/A, D/P, T/T
Product Details
Production Capacity 1000-8000 Pcs/h Core Components Motor PLC
Material Stainless Steel Color Silver
Application Pastry Food Tranditional Chinese Food Dimension(L*W*H) 20640*2030*1915mm
Key Selling Points High Productivity Function Grain Product Processing
High Light

Film Covering Paratha Pressing Machine

,

Stainless Steel Paratha Pressing Machine

,

1000pcs/h Paratha Making Machine

Leave a Message
Product Description

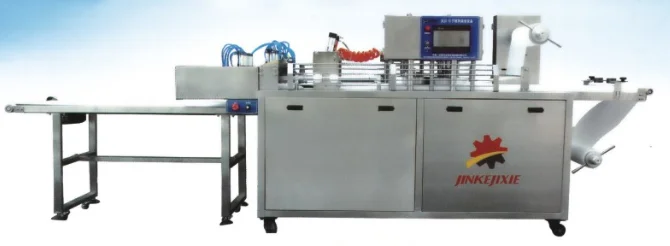

Factory Direct Shredded Cake Paratha Pressing and Film Covering Machine for Frozen Roti Laccha Paratha

STRUCTURE This machine contains below parts: Film upper and lower covering part, Pressing and molding part; Clamping feed part; cutting part; Cylinder blanking part; Conveyor and sorting part. WORKING PRINCIPLE Put the doughs on mold of filming part → Filming upper and lower→ Formed through second pressing → pressed dough is sent to precise position by Clamping part→Film is cut off by Cutting Part→ Formed products are clipped out and conveyed by Cylinder blanking part →Formed products are stacked and conveyed by Convey and Sorting part →Put into storage.

Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 0
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 1
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 2
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 3
Product Paramenters

SPECIFICATION

Filming Molding machine is an automatic machine which is developed by Jinke. It is more convenient than traditional method by manual and can reduce the production time to relieve labor intensity.
Shredded Cakes, pancakes, Roti Paratha, tabletop spring onion cake, spring onion pie, thin crust sweet cake, thin crust series kinds and sizes can be processed by this machine.
Model
JKYBFM-Ⅰ
Air pressure
0.8-1.0M/Pa
Product Weight
60-200g/pc
Capacity
1500-2800pcs/h
Power
0.25kw
Voltage
220V /380V
Frequency
50Hz-60Hz
Dimension
length 2.8 X width 0.95 X height 1.35 m
Product Diameter
150-260 Customized
Details Images
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 4

Dough Ball Conveying

Here dough balls are placed between each filming roller
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 5

Dough Pressing & Forming Molds

Size and thickness can be designed as requested
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 6

PLC Control Systom

Upload different language system, including English, Russian,Arabic ect...Product conveying time, molding plate time and Product counter can be adjusted
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 7

CuttIng and counter stacking

After filming and pressing, film is cut in horizotnal and vertical direction. After cutting, automatically starts counter stacking into conveyor belt


Packing & Delivery
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 8
Film Covering Shredded Cake Paratha Pressing Machine For Frozen Roti Laccha 9
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Information

Tortilla production line



Our Exhibition

Tortilla production line



Our Services



1. Pre-sales service:

Sales person, project manager, technology engineer, accountant staff

Professional responsing-team: would be very fast and exactly to send your offers

2. Online/sale service

Super and solid quality

Fast delivery

Standard export package or as your demand

3. After-sales service

Assistance to build factory

Repairing and maintenance if any problem occur in warranty

Installation and clerks training

Spare and wearing parts for free or with big discount

Any feedback of machines can be told us, and we will try our best to support

4. Other cooperation service

Technology knowledge share

Factory building advising
