Layered Dough Ball Making Machine Customizable Size High Capacity

Place of Origin China
Brand Name SSS
Certification CE ISO
Model Number SSS-MXGB-650
Minimum Order Quantity 1 set
Price USD30,000-50,000/Set
Packaging Details Wooden case
Delivery Time 45 Days
Supply Ability 20 set per month
Product Details
Machine Name Mexican Tortilla Making Machine Core Components PLC, Engine, Motor, Teflonn Belt
Warranty Of Core Components 1 Year Machine Material 304 Stainless Steel
Belt Material Food Grade PU Machine Color Silver
Application Fields Bakery; Food And Beverage Industry Brand SSS
Raw Material Wheat Or Corn Floour Marketing Type Hot Sale 2019
Machine Name Paratha Proccessing Dough Ball Making Machine
High Light

Layered Dough Ball Maker

,

Customizable Size Dough Ball Making Machine

,

Customizable Size Tortilla Dough Ball Ma

Leave a Message
Product Description
High Capacity Layered Dough Ball Making Machine Customizable Size Roujiamo Ball Producting Machine
Dough Roller Sheeting And Cutting Machine Customizable Size Shape Layered Dough Ball Making Machine



Factory Dough Roller Sheeting and Cutting Machine

Customizable Cutting Shape Layered Dough Ball Making Machine

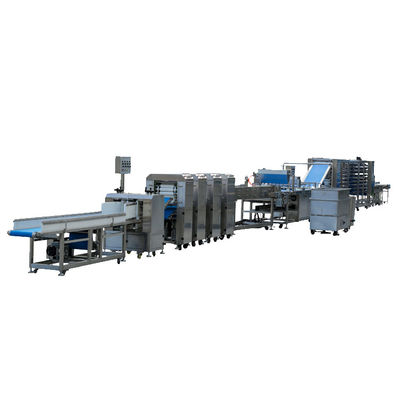

By feeding the mixed dough to start the automatic Paratha Processing line. It will automatically press and roll the dough, then stretch it into a thin skin after rolling, widening and stretching. After a series of processes such as brushing oil, sprinkling green onion
and spices, it is formed and rolled into a spiral dough balls.
Can be equipped with Stamping machine, auto tray-arranging machine and paratha pressing film covering machine for pre-packaging products

Layered Dough Ball Making Machine Customizable Size High Capacity 0
Layered Dough Ball Making Machine Customizable Size High Capacity 1
Layered Dough Ball Making Machine Customizable Size High Capacity 2
Layered Dough Ball Making Machine Customizable Size High Capacity 3
Layered Dough Ball Making Machine Customizable Size High Capacity 4



* Automatic Frozen Plain Paratha Dough Balls Machine is designed to make various kind of food products such as Plain Paratha ,Roti Paratha, Stuffed Paratha ,Lacha Paratha ,Aloo Paratha,Flat Bread ,Chapati, Roujiamo Buns ect...
Processing : Dough pressing - sheeting -oil ,scallion spraying-rolling -forming -freezing -baking
* It is available for chopped beef ,barbecued pork meat and green onion , bean paste as stuffing
* Automatic stamping and fliming machine ,Place the dough balls between the top and bottom film, through the pneumatic pressing plates to press them into thin pastries, then cut the film for counting and stacking.
* The machine is easy to assemble, clean and maintain. The automatic oil device can prolong the life of fixture service All parts contacted with food are made of food grade stainless steel.

Advantages
The machine adopts PLC and touch screen memory function, and the original parts of the whole production line adopt international famous brands to ensure stable and reliable products. Easy operation, stable quality, infinitely adjustable within a certain range, automatic production process, compact structure, stable performance and easy maintenance.
Technical Parameters
Weight Range
50-200 g/piece
Capacity
2000-6000 pcs/Hour
Power Supply
30kw/380v/50hz (Customizable)
Size of Production Line
27000*1200*1800
Weight of the Machine
Aprox. 6800kg
Air Pressure
0.8-1.0mpa
Finished Products
Layered Dough Ball Making Machine Customizable Size High Capacity 5
Layered Dough Ball Making Machine Customizable Size High Capacity 6
Layered Dough Ball Making Machine Customizable Size High Capacity 7
About Machine
Machine Equipment
No.
Equipment Name
Amount
1
Dough Inputor
1
2
Paratha Main Part
1
3
Dough Pressor
4
4
Dough Wider
1
5
Dough Sheet Climber
1
6
Section Cuttor
1
7
Rolling Equipment
1
8
Rolling Working-platform
1
9
Carburetor
2
10
Paratha Pressor&packing Equipment
1
11
Number Counter
1
Total
15
Layered Dough Ball Making Machine Customizable Size High Capacity 8
Top and bottom film covering and pressing Machine
Product Weight
60-150G/Piece
Producition Capacity
1500-2800 Pieces/Hour
Power
0.25kw/220v/50hz
Machine Outline Size
4500*1200*1500 mm
Machine Weight
600 kg /Set
Product Diameters
160~230MM
Pressure Range
0.8-1.0mpa
Layered Dough Ball Making Machine Customizable Size High Capacity 9
Automatic Tray-arranging machine
Product Weight
60-200G/Piece
Producition Capacity
1500-7000 Pieces/Hour
Power
1.0kw/220v/50hz
Machine Outline Size
1400*1200*1600 mm
Machine Weight
450kg /Set
Product Diameters
160~230MM
Pressure Range
0.8-1.0mpa
Layered Dough Ball Making Machine Customizable Size High Capacity 10
Layered Dough Ball Making Machine Customizable Size High Capacity 11
Packaging & Shipment
Layered Dough Ball Making Machine Customizable Size High Capacity 12
Layered Dough Ball Making Machine Customizable Size High Capacity 13
