Raw Apple Pulp Fruit Puree Production Line Aseptic Large Bag Packaging

Place of Origin china
Brand Name sss
Model Number customized
Product Details
Item Raw Apple Pulp Aseptic Large Bag Packaging Fruit Puree Production Line Input Fresh Apple
Output Apple Puree Capacity 1-100t/h
Product Packing Aseptic Bag Feature Turnkey Project
High Light

Raw Apple Fruit Puree Production Line

,

Aseptic Packaging Fruit Puree Production Line

Leave a Message
Product Description

Raw Apple Pulp Aseptic Large Bag Packaging Fruit Puree Production Line



Raw Apple Pulp Aseptic Large Bag Packaging Fruit Puree Production Line consists of pre treatment unit,mashing,packing, control system.

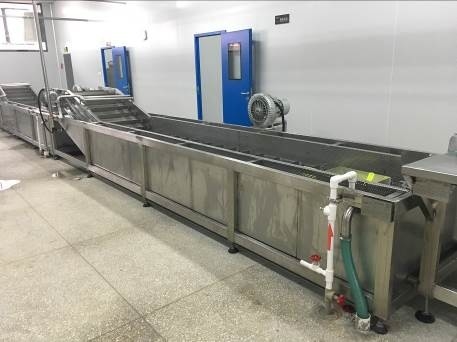

Spray brush cleaning machine

Ø Ø output: 1T/h

Ø Ø SUS304 stainless steel, 2mm thick

Ø Ø frame adopts 304 square steel, with specifications of 100*100*3mm

Ø Ø food grade brush,

Ø Ø delivery adopts stainless steel chain drive,

Ø Ø provides a discharge outlet to clean the hand hole;

Ø Ø bottom adopts acrylic plate seal to prevent splashing;

Ø Ø water tank is equipped with a filter device to recycle the spray water;

Ø Ø power: 6kw

Ø Ø size :3500*800*1500mm

Chain board fruit picker

Ø Ø output: 1T/h

Ø Ø SUS304 stainless steel, 2mm thick

Ø Ø frame adopts 304 square steel, with specifications of 100*100*3mm

Ø Ø platform frame and guardrail adopt 40*40*3mm square steel and lay 2mm

Ø Ø power: 3kw

Ø Ø food grade engineering plastics

Ø Ø size :3000*800*1500mm

Rinsing machine

Ø Ø output: 1T/h

Ø Ø SUS304 stainless steel, thickness 2.5mm

Ø Ø frame adopts 304 square steel, with specifications of 100*50*3mm

Ø Ø provides a pull-out device;

Ø Ø provides cleaning hand opening, discharge opening, overflow opening,

Ø Ø adopts stainless steel scraper hoist, the frame is 50*50*3mm

Ø Ø air pump: 5M3/ min

Ø Ø power: 6kw

Ø Ø size :3500*800*1500mm
