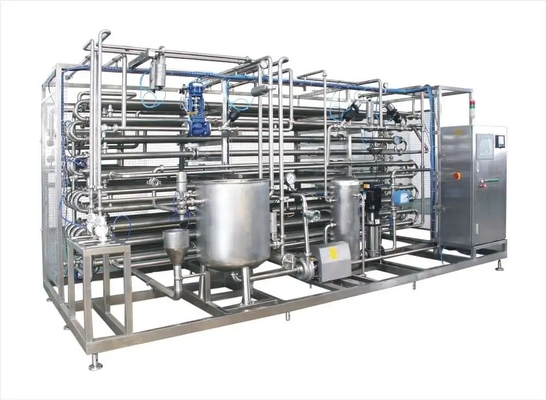

2t/H Plate Type UHT Sterilizer Machine For Milk Production

Place of Origin china
Brand Name sss
Model Number customzied
Minimum Order Quantity 1
Price usd25000
Packaging Details standard export packing
Delivery Time 40
Payment Terms L/C, T/T
Supply Ability 5sets/m

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item UHT Sterilizer Machine Material Inlet Temp 30℃~50℃
Material Output Temp. 90℃ Sterilization Temp. 85-145℃
Sterilization Time 4s Capacity 2t/h
High Light

Plate Type UHT Sterilizer Machine

,

Milk Production UHT Sterilizer Machine

,

UHT Sterilizer Machine 2t/H

Leave a Message
Product Description

2t/H Plate Type For Used For Milk Production UHT Sterilizer Machine



UHT Sterilizer Machine



Features:

1) Suitable for pasteurization and UHT kinds of material with good fluidity

2) The material and heating medium are heated by non-contact heat exchange in their respective sealing system to ensure the material safety

3) The sterilizing time is short to ensure that the nutrients of the material are not destroyed

4) The whole machine is made of food grade stainless steel to meet the requirement of food equipment

5) Good heat transfer effect,high heat recovery and low energy consumption

6) The main control component,valve and accessories are international famous brand with long service life

7) PLC control can achieve automatic control of heating temp.,hot water temp.,steam flow of each section of material,also equipped with material automatic return system ensures the sterilization effect of material

8) Simple structure,easy to clean and operate,low maintenance cost



Technical parameter:

Structure

Plate structure manufactured with patented technology,

Mainly composed of a plate heat exchanger, a transfer pump, a retainer, a closed bucket, a brazed plate superheated water heat exchanger, a controller, etc.;

a set of material pumps with adjustable speed;

a CIP pump;

a water pump;

pre-material buffer tank with stirring;

steam shielding protection of relevant connection parts;

superheated water brazing type heating plate,

closed water tank

Material inlet temp. 30℃~50℃
Material output temp. 90℃
Sterilization temp. 85-145℃
Sterilization time 4s
Cooling water temp <18℃
Cooling water consumption 15t/h
Steam consumption 380kg
Compressed air 0.6m3/min
System pressure about 5bar
Power 5kw
