Fresh Mango Fruit Processing Line 2 Tons Per Hour

Place of Origin china
Brand Name sss
Model Number customized
Minimum Order Quantity 1
Price 300000
Packaging Details standard export packing
Delivery Time 80
Payment Terms L/C, T/T
Supply Ability 10 sets per year
Product Details
Item Name 2 Tons Per Hour Fresh Mango Fruit Processing Line Capacity 2t/t
Application Fruit Plant Process Automatic=manual Operation
Feature Turmkey Project Packing Standard Export Packing
High Light

2 Tons/H Fruit Processing Line

,

Fresh Mango Fruit Processing Line

,

SS 304 Fruit Processing Line

Leave a Message
Product Description

2 Tons Per Hour Fresh Mango Fruit Processing Line



5 Tons Per Hour Fresh Mango Fruit Processing Line





5 Tons Per Hour Fresh Mango Fruit Processing Line from washing to packing

1 Bubble cleaning machine + ozone

Ø capacity:2T/H;

Ø SS304, Thickness 2.5mm;

Ø SS304 square steel for frame

Ø Equipped with cleaning hand hole, sewage outlet and overflow outlet;

Ø Using 304 stainless steel scraper for conveying and lifting;

Ø Air pump: 5M3/min;

Ø Motor mechanical stepless speed regulation motor;

2 Picking, Conveyor

Ø capacity:2T/H

Ø SS304, Thickness

Ø The belt is food grade;

Ø SS304 square tube for Main frame;

Ø Conveyor belt: food grade PU material;

Ø Motor: Mechanical stepless speed regulation motor

3 Bubble rinse machine (pure water)

Ø capacity:2T/H;

Ø SS304, Thickness 2.5mm;

Ø SS304 square steel for frame

Ø Equipped with cleaning hand hole, sewage outlet and overflow outlet;

Ø Using 304 stainless steel scraper for conveying and lifting;

Ø Air pump: 5M3/min;

Ø Motor mechanical stepless speed regulation motor;

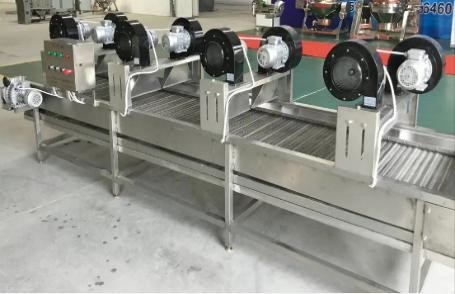

4 Drain and blow dryer

Ø Output: 2T/h

Ø The frame is made of rectangular square tube, and the material is 304;

Ø Using 304 stainless steel mesh belt;

Ø The top is equipped with multiple sets of fans to blow water on the surface of the fruit;

Ø Material conveying method: mesh belt conveying;

Ø Motor brand: Jiangsu Kaibo Machinery stepless speed regulation motor;

Ø There is a water tray at the bottom;

5 High lift

Ø Output: 2T/h

Ø Smooth scraper baffle, water seepage structure;

Ø Made of 304 stainless steel;

Ø 304 square tube frame;

Ø Adopt chain drive mechanism;
