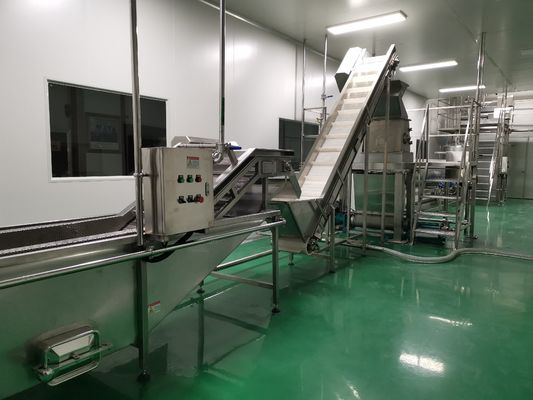

Passion Fruit And Mango Processing Line 200kg Per Hour

project

System and device name

Main technical parameters

A1

Cleaning machine

production capacity :200KG/H
Ø Øadopts SUS304 stainless steel;
Ø Ø host SUS304 stainless steel;
Ø Water consumption: 0.2t /H
Ø Øchain adopts SUS304 stainless steel chain;
Ø Ø power: 3kw
Ø Ø ~ long 3000mm* wide 450* high 800

A2

Rinsing machine

Ø Ø production capacity :200KG/H
Ø Ø adopts SUS304 stainless steel;
Ø Ø host SUS304 stainless steel;
Ø Water consumption: 0.2t /H
Ø Ø chain adopts SUS304 stainless steel chain;
Ø Ø power: 3kw
Ø Ø ~ long 3000mm* wide 450* high 800

A3

lift

Ø Ø yield: 200KG/H
Ø Ø adopts SUS304 stainless steel
Ø Ø net belt uses a PTFE cloth conveyor belt
Ø Ø power: 0.75kW
Ø Ø ~ 3200mm* width 450* height 1800

A4

Peeling machine

Output: 1200 PCS/hour
Thickness: 1, 5 mm
Fruit diameter: 40-100
Fruit height of adaptation: 40-120
Power: 0.6 kW
Voltage: 220V,50/60Hz
Weight: 320 kg
Appearance: 1700 * 850 * 1800

A5

Passion fruit seed removing machine

Output: 1 ton/hour
Thickness: 1, 5 mm
Power: 1.1 kW
Voltage: 380V,50/60Hz
Weight: 620 kg
Appearance: 2100 * 800 * 1600

A6

dryer

Ø Ø rated processing capacity: 100kg drying oven is to heat and dry the dried material under sealed condition, which accelerates
the drying rate.
Ø Ø baking frame layer: multiple layers
Ø Ø baking frame intermittent: 102mm
Ø Ø temperature: adjustable 35-120 degrees,
Ø Ø heating employs electric heating or steam heating
Ø Ø installed capacity: 9KW

A7

Sugar system equipment

Ø Ø Capacity: 500L;
Ø Ø vacuum: -0.08mpa;
Ø Ø Three layer sleeve tank design;
Ø Ø adopts steam heat transfer;
Ø Ø vacuum pump Adopts domestic brand vacuum pump;
Ø Ø soda separator;
Ø Ø pipeline valve;
Ø Ø adopts SUS304 stainless steel;
Ø Ø size: 3600*2000*1800mm (l * W * h);
Ø Ø weight: 500KG

A8

Select line

Ø Ø yield: 200KG/H
Ø Ø SUS is manufactured in stainless steel
Ø Ø net belt uses a PTFE cloth conveyor belt
Ø Ø power: 1.5kW
Ø Ø dimensions: 4500*400*1100mm
Ø Ø weight: 120kg

A9

Microwave sterilizer

Ø Ø capacity: 200KG/H
Ø Ø adopts SUS304 stainless steel
Ø Ø ~ 5000mm* width 600* height 1500

A10

Automatic packing, weighing and conveying line, coding

1.Weighing range: 30-1000g
2. Single bucket volume: 1.3L
3. Weighing accuracy: 0.1-1.0g
4. Weighing speed: 30-130bag/min
5. Driving mode: stepper motor
6.Power supply: 220 v / 50 hz
7, power rate: 2000WVertical packing machine
1. 1. Bag size: width 55-200mm
2. The length of 60-300 - mm
3. The equipment quotation includes one bag size mold,
4. 2. Packaging speed: 40-75bag/min
5. 3. Power supply: 220V/50HZ
6. 4. Power: 3.0KW
7. 5 compressed air 6-8kg
8. 6. Gas consumption: 0.4m3/min
9. 7. Weight 800 kg
10. 1. Power: 60W
11. 2. Conveying speed of 100bag/min
12. 3. Power 220 v / 50 hz
13. 4. 60 kg in weight Stainless steel Z type material handling equipment
14. (including bin vibration)
1.Lifting capacity: 7200L/h
2. Single bucket volume: 1.84L
3.Power supply: 3 Phase 380V,50-60 Hz
15. Power rate: 750W
16. length 6000mm* width 1800* height 2800

A11

conveying

Ø Ø A delivery line required for a complete set of equipment
Ø Ø adopts food grade plastic chain board;
Ø Electric motor adopts stepless speed regulation;
Ø Ø speed adjustable
Ø Ø bracket is made of stainless steel
Ø Øheight adjustable 0.4 m
Ø Ø~ 4000mm* wide 350* high 600

A12

Hand-held Printer (large character)

Ø Ø 1. The most lightweight 4 in 1 design, controller, screen, card box and nozzle into one.
Ø Ø 2.2.8 inch color backlight large LCD screen, enables visibility.
Ø Ø 3. Operates completely independently, without computer connection.
Ø 4.U2 special pocket remote control, easy to operate.
Ø Ø 5.SD card, adjustable
