Lapel Type PE Film Filling And Packaging Machines Automated 5 - 60 Bags/Min

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWarranty | 12 Months | Voltage | 110V/220/380V Or Customization |
---|---|---|---|
Driven Type | Electric And Pneumatic | Automatic Grade | Automatic,Semi-Automatic |
Function | Measurement, Filling, Bag Making, Inflation (exhaust), Date Printing And Finished Product Delivery, And Counting | After-sales Service Provided | Video Technical Support,Engineers Available To Service Machinery Overseas |
Material | Stainless Steel, 304 SS Food Grade | ||
Highlight | PLC Control Filling And Packaging Machines,PE Film Filling And Packaging Machines |
5-60 Bags/Min Lapel Type PE Film Automated Packaging Machine Filling And Packaging Machines

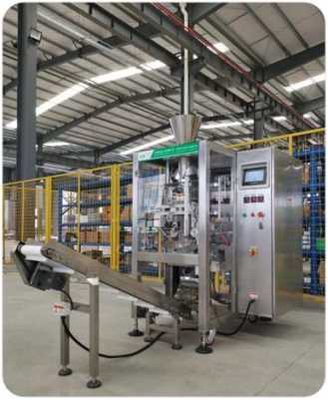

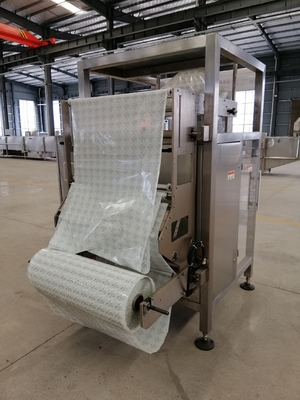

PE Film Lapel Automatic Packing Machine
This machine includes automatic feeding and distribution system, gold-to-metal detection, function sorting, automatic material sorting, boxing, automatic opening, packing, sealing, bundling, palletizing, etc.
Main performance and features
1. The corresponding metering system can be equipped according to the characteristics of different materials.
2. Servo drive system, which has high precision, stable performance and other advantages.
3. Stainless steel material box, detachable and easy to clean up.
4. Equipped with security protection, in line with enterprise security management requirements.
5. Intelligent temperature controller controls temperature accurately and ensure sealing beautiful and smooth .
6. Adopting PLC control system and servo paper pulling structure. The sealing and cutting positions are all equipped with cylinder devices, and there is also a large display touch screen mechanism driving the control core. These maximize the control accuracy, reliability and intelligence of the whole.
7. Automatically complete the entire packaging process, including product measurement, filling, bag making, inflation (exhaust), date printing and finished product delivery, and automatically counting.
8. Fault display system helps troubleshooting in time.
Model | XC-L520 |
Bag Size |
Length (L): 80-400 mm Width (w): 70-250 mm |
Packing Speed |
5-60 bags/minute (depending on material conditions and packaging requirements) |
Power | 220V 50Hz |
Compressed Air |
6 kg/cm²(kg/sq.cm) 250 liters/minute (L/min) |
Machine Noise | W75 db |
Total Power | 4.5 KW |
Machine Weight | 640 KG |
Dimension | 1870X1305X1600 (mm) |
