Tubular Type 10s Sterilizing UHT Sterilizer Machine 1 Ton Per Hour

Place of Origin china
Brand Name sss
Model Number customzied
Product Details
Item 1 Ton Per Hour Tubular Type 10s Sterilizing UHT Sterilizer Machine Capacity 1t/h
Type Tubular Type Power 9kw
Inlet Material Temp 1 Ton Per Hour Tubular Type 10s Sterilizing UHT Sterilizer Machine Output Material Temp Less Than 40C
High Light

Tubular Type UHT Sterilizer Machine

,

10s Sterilizing UHT Sterilizer Machine

,

1T/H UHT Sterilizer Machine

Leave a Message
Product Description

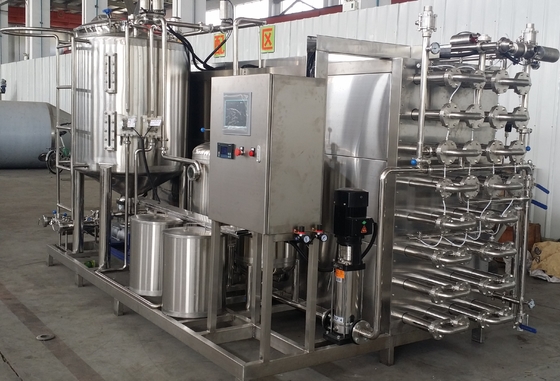

1 Ton Per Hour Tubular Type 10s Sterilizing UHT Sterilizer Machine

UHT tubular sterilizer

Ø Special tubular structure, specially used for juice materials;

Ø Capacity: 1T/H;

Ø Material inlet temperature: 40℃~50℃;

Ø The material outlet temperature is less than 40℃;

Ø Sterilization temperature: 95℃~121℃;

Ø Sterilization time: 10S;

Ø Cooling water temperature <30℃

Ø The main features of the system are as follows:

Ø Rated processing capacity

Ø Cooling water consumption: 30 tons/hour, the water temperature is less than 30 degrees Celsius;

Ø Steam consumption: 600kg/H

Ø Compressed air; 1m3/min

Ø Installed capacity: 9KW,

Ø System pressure: about 50BAR

Ø One screw pump, one hot water pump, one CIP pump

Ø Front 100L material buffer tank;

Ø Plate Heat Exchanger, sealed water tank with sterilization pump

Ø Independent control cabinet, IP protection, man-machine interface PLC

Ø Siemens PLC, Siemens touch screen

Ø Schneider, Omron low voltage components, Japan Fuji temperature controller

Ø Taiwan AirTAC pneumatic components

Ø Steam valve group: pressure reducing valve, filter, regulating valve, globe valve, steam trap



 Tubular Type 10s Sterilizing UHT Sterilizer Machine 1 Ton Per Hour 0



SSS Food Machinery Technology Co., LTD is a leading supplier of food processing equipment in China.We are able to provide complete turnkey project solution for intelligent processing equipment.We are mainly specialized in fruit and vegetables processing line for puree,juice,jam,dried fruit, powder,fruit wine & vinegar,fermented beverage,ect .Also the related stand-along equipment with superior quality,competitive price and professional service.SSS has a complete team from R&D design, production, quality inspection,process guidance, with more than 20 years’ professional experience in this field.
