100L Per Hour UHT Sterilizer Machine Stainless Steel 304 Material

Place of Origin china
Brand Name sss
Model Number customzied
Minimum Order Quantity 1
Price 10000
Packaging Details standard export packing
Delivery Time 40
Payment Terms L/C, T/T
Supply Ability 10pcs/m
Product Details
Item Stainless Steel 304 Material Made 100L Per Hour UHT Sterilizer Machine Material Ss304
Capacity 100l/h Application Juice Making
Feature Turnkey Project Sterilz Time 10s
High Light

Stainless Steel 304 UHT Sterilizer Machine

,

100L Per Hour UHT Sterilizer Machine

,

100L/Hour UHT Sterilization Machine

Leave a Message
Product Description

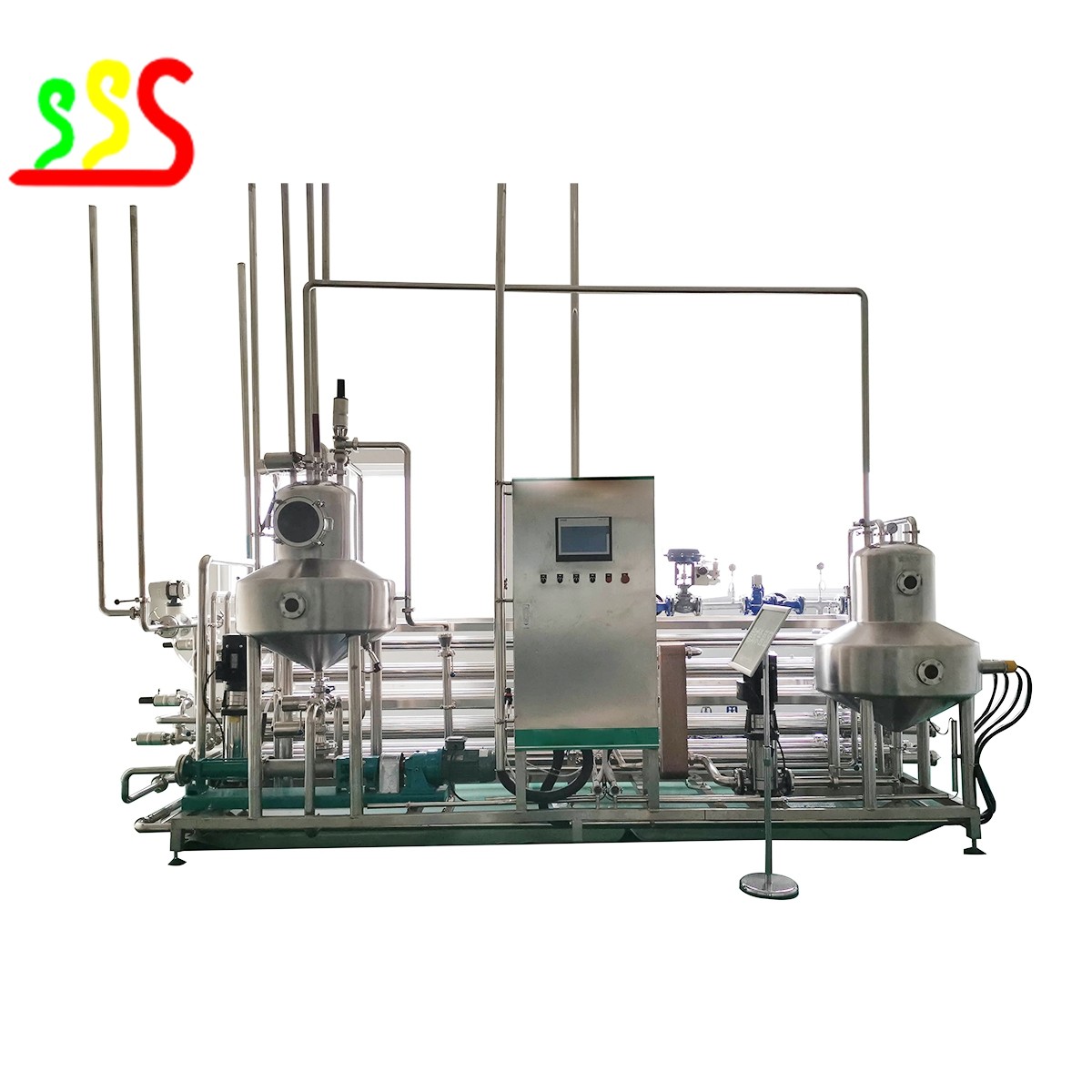

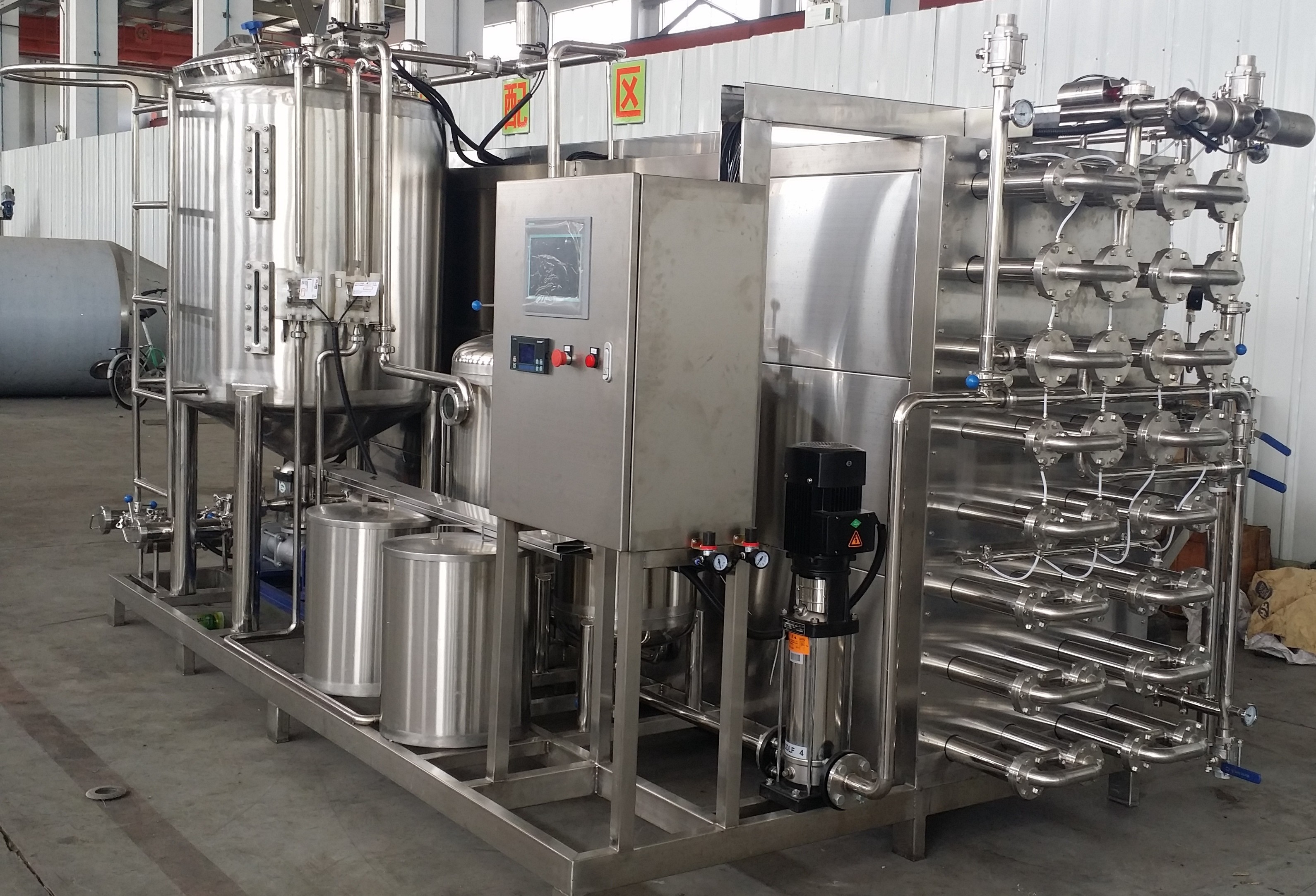

Stainless Steel 304 Material Made 100L Per Hour UHT Sterilizer Machine



item specification
UHT Sterilizer Machine

The contact surface of the product is made of 304 stainless steel,

and the rest is made of 304 stainless steel.

The rated capacity of the equipment: 100 liters/hour,

the discharge temperature of the sterilizer: 25~90℃;

the sterilization temperature is adjustable: 80℃~150℃,

the sterilization time is 10S ,

the equipment configuration includes

1 set of hopper;

1 set of material pump,

conveying the product flow rate of 100 liters/hour,

a set of tubular heating section to heat the material to 150 ℃;

a set of tubular tap water cooling section, the tap water is cooled to a state close to normal temperature , manual control valve, manual control valve;

1 set of thermostat/display (heating section); size is about: 1800mm×1500mm×1800mm,



100L Per Hour UHT Sterilizer Machine Stainless Steel 304 Material 0







workshops



100L Per Hour UHT Sterilizer Machine Stainless Steel 304 Material 1

processing equipment and quality assurance

3kw double-table high-power laser cutting machine 1SET CNC spark discharge machine, 6SETS
Drilling machine ,Z3025×10/1 Z3032×10, 8SETS CNC wire cutting, Japan FANUC, 10SETS
Automatic milling machineX60-W,3SETS Grinding machine PFG4080AH,5SETS
Lathe 6250-6150, 10SETS Spinning machine,2SETS
Automatic polishing machine,2SETS Spheronizing machine,2SETS
Shearing machine QC12Y6-2500,2SETS Folding machine WEHK-250/3100,3SETS
automatic welding machine,3SETS electric welding machine315A,50SETS
TIG welding machine200A,80SETS TIG welding machine300A,150SETS

100L Per Hour UHT Sterilizer Machine Stainless Steel 304 Material 2
