Aseptic Casing UHT Sterilizer Machine 1.2 Ton Per Hour

Place of Origin china
Brand Name sss
Model Number customzied
Minimum Order Quantity 1
Price usd55000
Packaging Details standard export packing
Delivery Time 40
Payment Terms L/C, T/T
Supply Ability 3sets/month
Product Details
Item 1.2ton Per Hour Aseptic Casing Sterilizer UHT Sterilizer Machine Material Ss304
Capacity 1.2t/h Type Aseptic Casing Type
Sterilzier Time 15s Power 11.5kw
High Light

1.2t/H UHT Sterilizer Machine

,

Aseptic Casing UHT Sterilizer Machine

,

15s Sterilization Uht Machine

Leave a Message
Product Description

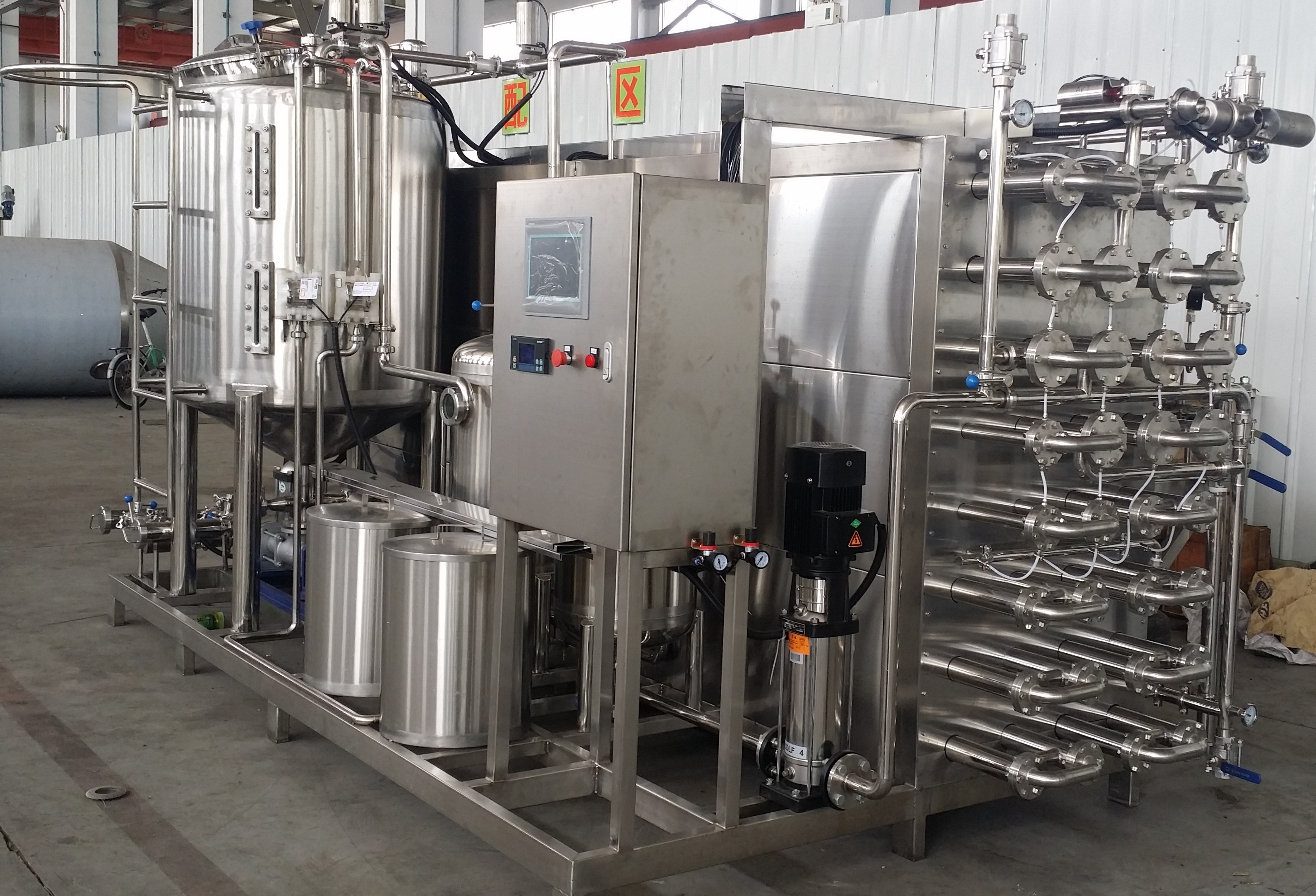

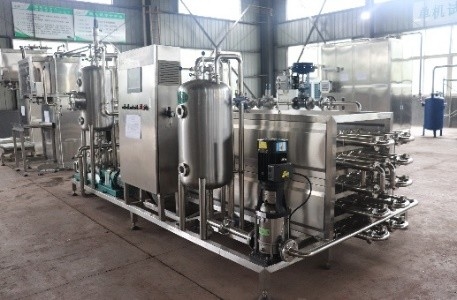

1.2ton Per Hour Aseptic Casing Sterilizer UHT Sterilizer Machine



Aseptic casing sterilizer

Ø Output: 1.2T/h;

Ø It is produced and manufactured by patented technology, which is the leading special sterilizer for high-viscosity materials in China. It is mainly composed of a casing heat exchanger, a continuously variable transmission pump, a retainer, a closed water bucket, a plate type superheated water heat exchanger, and a controller. The process of the equipment is as follows:

Ø Material inlet temperature 40℃~50℃

Ø Material outlet temperature is less than 40℃

Ø Sterilization temperature 95℃~121℃

Ø Sterilization time 15S

Ø Cooling water temperature <30℃

Ø Cooling water consumption: 30 tons/hour, water temperature is less than 32 degrees Celsius;

Ø Steam consumption: 500KG/H,

Ø Compressed air; 0.5m3/min

Ø Installed capacity: 11.5KW,

Ø One set of screw pump with adjustable speed

Ø One CIP pump

Ø Pre-material buffer tank with stirring

Ø Superheated water heating plate, sealed water tank with sterilization pump

Ø Siemens PLC, Siemens touch screen

Ø Schneider, Omron low-voltage electrical appliances

Ø AirTAC pneumatic components

Ø ØJapan Fuji temperature controller, domestic high-quality sensor

Ø Steam valve group: globe valve, pressure reducing valve, regulating valve, steam trap, filter, etc.







Aseptic Casing UHT Sterilizer Machine 1.2 Ton Per Hour 0



1. Company introduction

SSS Food Machinery Technology Co., LTD is a leading supplier of food processing equipment in China.We are able to provide complete turnkey project solution for intelligent processing equipment.We are mainly specialized in fruit and vegetables processing line for puree,juice,jam,dried fruit, powder,fruit wine & vinegar,fermented beverage,ect .Also the related stand-along equipment with superior quality,competitive price and professional service.SSS has a complete team from R&D design, production, quality inspection,process guidance, with more than 20 years’ professional experience in this field.
