Drink Water Production Line Filling And Packaging Machines 3000 Bottles/H

Place of Origin China
Brand Name SSS
Certification CE
Model Number XGF8-8-3
Minimum Order Quantity 1
Packaging Details wooden or suitable exportation
Delivery Time 60 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets monthly
Product Details
Warranty 1 Year Voltage 220V/110V,380-460v
Driven Type Electric Automatic Grade Automatic,Semi-Automatic
Function Washing Filling Capping After-sales Service Provided Video Technical Support,Engineers Available To Service Machinery Overseas
Condition New Customization Customed Made Yes
Multi-language English Application Water, Fruit Juice, Beverage Drink
High Light

3000 Bottles/H Filling And Packaging Machines

,

90mm Diameter Bottle Packing Machine

,

3000 Bottles/H Drink Water Production Line

Leave a Message
Product Description

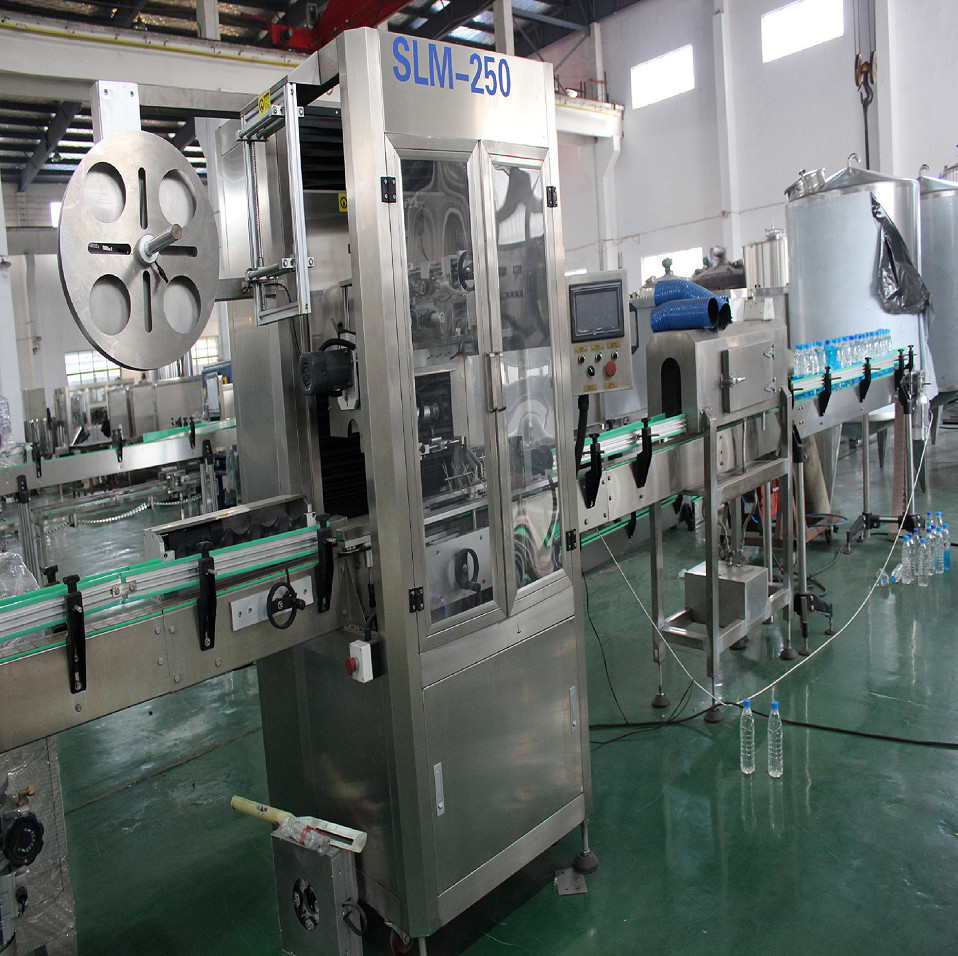

3000 Bottles/H Drink Water Production Line Filling And Packaging Machines

3000 Bottles/H Washing Filling Capping Machine Drink Water Production Line Filling And Packaging Machines

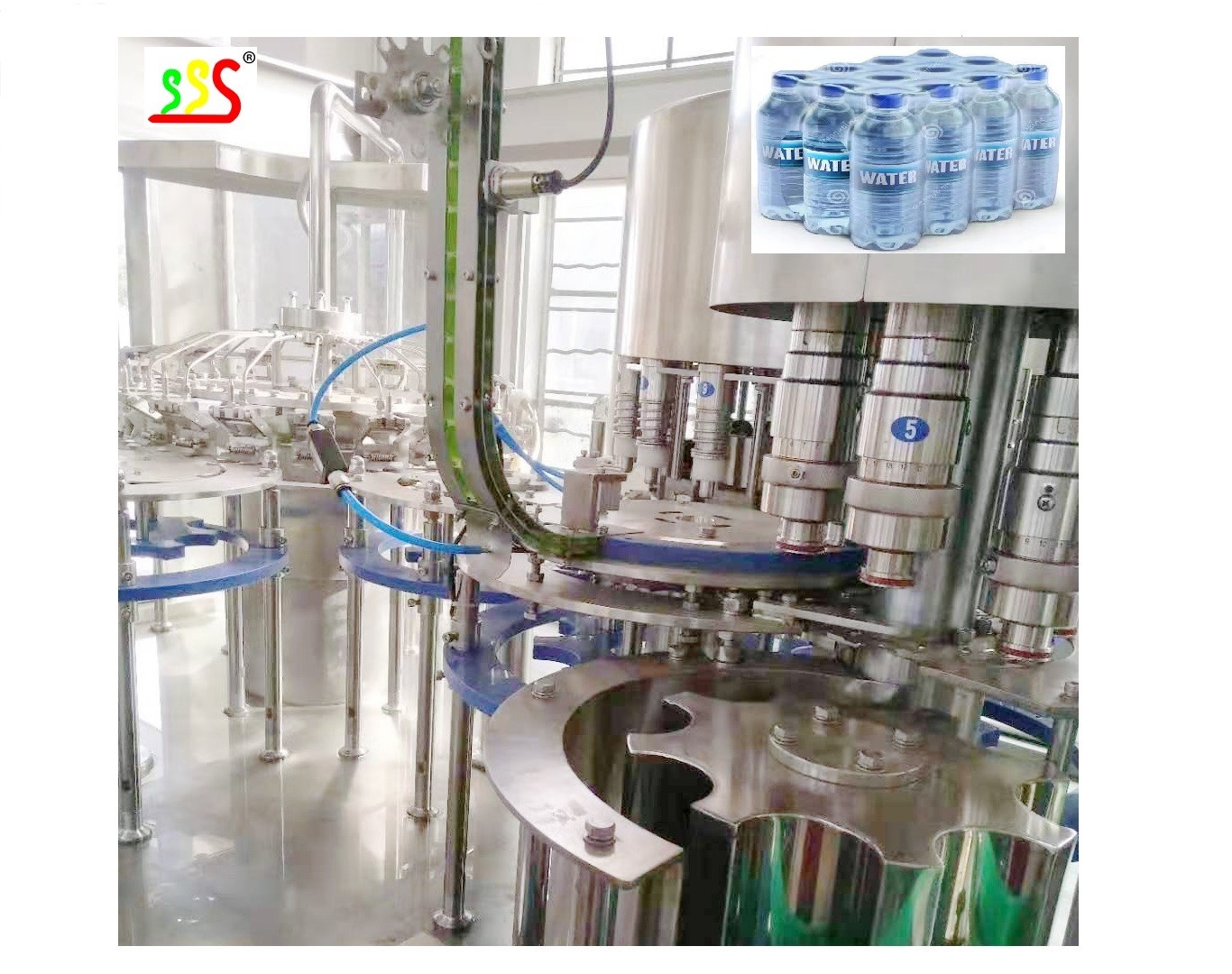

3 in 1 filling and packaging machine is combined the three single machines of washing, filling and sealing into one, driven by a transmission motor. It has the advantages of high degree of automation, compact structure, beautiful appearance, convenient operation and maintenance, safety and reliability, and continuously adjustable production capacity.



It has a wide range of applications, filling polyester bottles (bottles can be round and square), and sealing with screw caps (referring to polyester bottles). According to the user's different bottle quality, bottle shape and bottle capacity, the design can be changed to meet the needs of production.



1. Bottle shape: polyester bottle diameter φ50mm~φ90mm

Bottle height 150mm~300mm

2. Bottle cap: standard plastic screw cap

3. Beverage varieties: bottled water





Main performance parameters



1) Production capacity and head count

Production capacity: 3000 bottles/hour

Number of filling valves: 8

Number of rinse heads: 8

Number of capping heads: 3



2) Filling conditions

Filling temperature: normal temperature

Filling type: Gravity filling



3) Main motor: 5KW

Compressed air: 3m3/h



4) Main body dimensions and weight

Overall length: 2200mm

Full width: 1800mm

Full height: 2300

Net weight: 2500kg



Production capacity

                               30000 Bottles/H

Filling temperature

                               Normal temperature

Filling type

                               Gravity filling

Bottle shape

Bottle diameter φ50mm~φ90mm

Bottle height 150mm~300mm

Bottle cap

                               Standard plastic screw cap

Beverage varieties

                                          Pure water     Juice    Drinks
