2t/H Tubular Type UHT Sterilizer Machine For Fruit Juice Line

Place of Origin china
Brand Name sss
Model Number customzied
Minimum Order Quantity 1
Price usd56000
Packaging Details standard export packing
Delivery Time 40
Payment Terms L/C, T/T
Supply Ability 5sets/m
Product Details
Item 2t/H Tubular Type UHT Sterilizer Machine For Fruit Juice Line Material Staonless Steel
Capacity 2t/h Or Customzied Type Tubular Type
Control PLC Sterilizing Time 10s
High Light

2t/H Tubular UHT Sterilizer Machine

,

Fruit Juice Line Tubular Sterilizer Machine

,

Fruit Juice Line UHT Sterilizer Machine

Leave a Message
Product Description

2t/H Tubular Type UHT Sterilizer Machine For Fruit Juice Line



Features:

1) Suitable for pasteurization and UHT kinds of material with good fluidity

2) The material and heating medium are heated by non-contact heat exchange in their respective sealing system to ensure the material safety

3) The sterilizing time is short to ensure that the nutrients of the material are not destroyed

4) The whole machine is made of food grade stainless steel to meet the requirement of food equipment

5) Good heat transfer effect,high heat recovery and low energy consumption

6) The main control component,valve and accessories are international famous brand with long service life

7) PLC control can achieve automatic control of heating temp.,hot water temp.,steam flow of each section of material,also equipped with material automatic return system ensures the sterilization effect of material

8) Simple structure,easy to clean and operate,low maintenance cost







Technical parameter:

Structure

Plate structure manufactured with patented technology,

Mainly composed of a plate heat exchanger, a transfer pump, a retainer, a closed bucket, a brazed plate superheated water heat exchanger, a controller, etc.;

a set of material pumps with adjustable speed;

a CIP pump;

a water pump;

pre-material buffer tank with stirring;

steam shielding protection of relevant connection parts;

superheated water brazing type heating plate,

closed water tank

Material inlet temp. 30℃~50℃
Material output temp. 90℃
Sterilization temp. 85-145℃
Sterilization time 4s
Cooling water temp <18℃
Cooling water consumption 15t/h
Steam consumption 380kg
Compressed air 0.6m3/min
System pressure about 5bar
Power 5kw

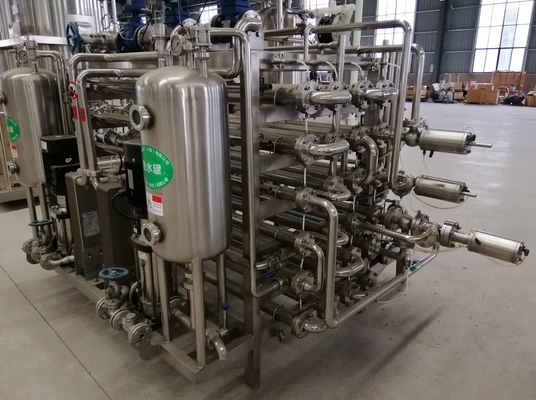

2t/H Tubular Type UHT Sterilizer Machine For Fruit Juice Line 0





Company Profile

SSS Food Machinery Technology Co., LTD is a leading supplier of food processing equipment in China.We are able to provide complete turnkey project solution for intelligent processing equipment.We are mainly specialized in fruit and vegetables processing line for puree,juice,jam,dried fruit, powder,fruit wine & vinegar,fermented beverage,ect .And dairy processing line.Also the related stand-along equipment with superior quality,competitive price and professional service.SSS has a complete team from R&D design, production, quality inspection,process guidance, with more than 20 years’ professional experience in this field.
