Juice Double Heads BIB Aseptic Filling Machine Semi Automatic

Place of Origin china
Brand Name sss
Model Number customzied
Minimum Order Quantity 1
Price 60000
Packaging Details standard export packing
Delivery Time 40
Payment Terms L/C, T/T
Supply Ability 5sets/m
Product Details
Item Juice Double Heads Semi- Automatic BIB Aseptic Filling Machine Type Semi-automatic
Filling Range 1-220L Capacity 1-8t/h
Structure Double Heads Material Ss304
High Light

Semi Automatic BIB Filling Machine

,

BIB Aseptic Filling Machine

,

Double Heads Aseptic Filling Machine

Leave a Message
Product Description

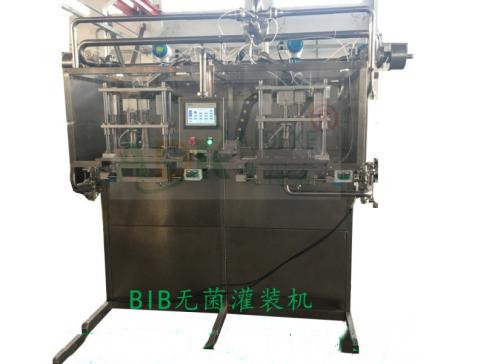

Juice Double Heads Semi- Automatic BIB Aseptic Filling Machine



Application:

It is mainly suitable for aseptic filling and filling of viscous or non-viscous fluids such as fruit and vegetable juices, jams and their concentrated products, and dairy products.

This machine is suitable for the large-capacity packaging form of flexible inner bag made of composite film, sealed faucet and outer packaging carton, which can be used for transit storage and transportation, and can also be made into final packaging.



Feature:

Original ecological quality assurance: zero-added non-reducing products;

Food safety guarantee: high temperature instantaneous sterilization, minimal loss of nutrients;

Nutritional flavor guarantee: aseptic cold filling technology;

The equipment has a high degree of automation, fast action efficiency, simple structure, reliability, and few failures, and the operation can be completed by a single person;

Bag-in-Box packaging equipment is a trending filling solution, aseptic cold filling method, flexible packaging method, high barrier and carton protection from light can keep nutrition without loss and unchanged for more than one year. Taste. Multi-specification and diversified packaging are more convenient for families, hotels, catering and tourism.





Technical parameter

structure aseptic filling system, flow (quality) measurement system, belt (engineering plastics) conveying system, computer PLC control system, operation platform, etc.;
Filling specifications 1L-220L optional, conical piston, good sealing performance, accurate dispensing volume, and convenient volume adjustment;
Sterilize device Sterilize the mouth of the bag and the filling chamber by steam injection to ensure that the filling chamber is always in a sterile state, and the sterilization, opening, filling and sealing of the sterile bag mouth are all completed in a sterile environment;
Measurement method imported flow meter measurement method, filling volume error ≤ 0.5%
Double heads can switch between two heads, and the filling material has zero backflow (for example, the first head is filling at the same time, and the head two is doing bagging action. After the bagging is completed, spray steam to sterilize the mouth of the bag. When the filling is over, the aseptic valve switches to the first two for filling);
  The whole machine is made of high-quality 304L/316L material, and the pipeline layout is reasonable without dead ends. The cylinder barrel, push rod and piston are made of stainless steel, which is corrosion-resistant and wear-resistant; the liquid contact part is made of stainless steel, which is easy to load and unload, and can be aseptically dispensed;
  The equipment supports CIP cleaning and SIP sterilization action processes, which can be linked with the front-end sterilizer without separate cleaning and sterilization;
Operation process bagging→starting→sterilizing→capping→automatic metering and filling→automatic capping→automatic bagging→transporting→packing;
size 1400(L)*950(W)*2200(H)mm, take 2-3m2






Juice Double Heads BIB Aseptic Filling Machine Semi Automatic 0



Company Profile

SSS Food Machinery Technology Co., LTD is a leading supplier of food processing equipment in China.We are able to provide complete turnkey project solution for intelligent processing equipment.We are mainly specialized in fruit and vegetables processing line for puree,juice,jam,dried fruit, powder,fruit wine & vinegar,fermented beverage,ect .And dairy processing line.Also the related stand-along equipment with superior quality,competitive price and professional service.SSS has a complete team from R&D design, production, quality inspection,process guidance, with more than 20 years’ professional experience in this field.
