3 In 1 Filling Fresh Orange Making Machine Sus 304 Stainless Steel

Place of Origin China
Brand Name SSS
Certification CE Certificate
Model Number Customization
Minimum Order Quantity 1 set
Price USD 55,000 - USD 75,000/set
Packaging Details Wooden Case.
Delivery Time 110 -120 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 30 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 1-5t/h Feature Saving Energy
Package Aseptic Bag Usage Making Jam
Weight 30000 KG Application Fruit Vegetable Vessel, Gear,
High Light

Sus 304 Orange Juice Production Line

,

Sus 304 Orange Making Machine

,

Saving Energy Orange Juice Production Line

You can tick the products you need and communicate with us in the message board.
Capacity 1-5ton/hour
Feature Saving Energy
Package Aseptic Bag
Usage Making jam
Weight 30000 KG
Application Fruit Vegetable vessel, Gear,
Leave a Message
Capacity 1-5ton/hour
Product Description

Orange Juice Production Line Sus 304 Stainless Steel 3-In-1 Filling Machine Fresh Orange Making Machine

Orange Processing Line



Product introduction



  Orange processing line  The finished products include orange juice, orange paste, orange pulp, orange jam, etc.

Raw material Orange
End product Orange Paste, pulp, puree, concentrated juice, clear juice, cloudy juice,
Processing capacity 10~5000 tons/day
Efficient input 75% raw fruit (25% as waste,peels and seeds)
Fruit consistence 10-38 Brix
End package Aseptic bag, metal can, glass bottle, PET bottle, and etc



Flow chart

3 In 1 Filling Fresh Orange Making Machine Sus 304 Stainless Steel 0



Main Machines

Low hoist



Ø Ø smooth scraper baffle, seepage structure;

Ø Ø adopts SUS304 stainless steel;

Ø Ø SUS304 square tube frame 80x40x3;

Ø Ø adopts chain drive mechanism;

Ø Ø control mode: automatic control and manual local control

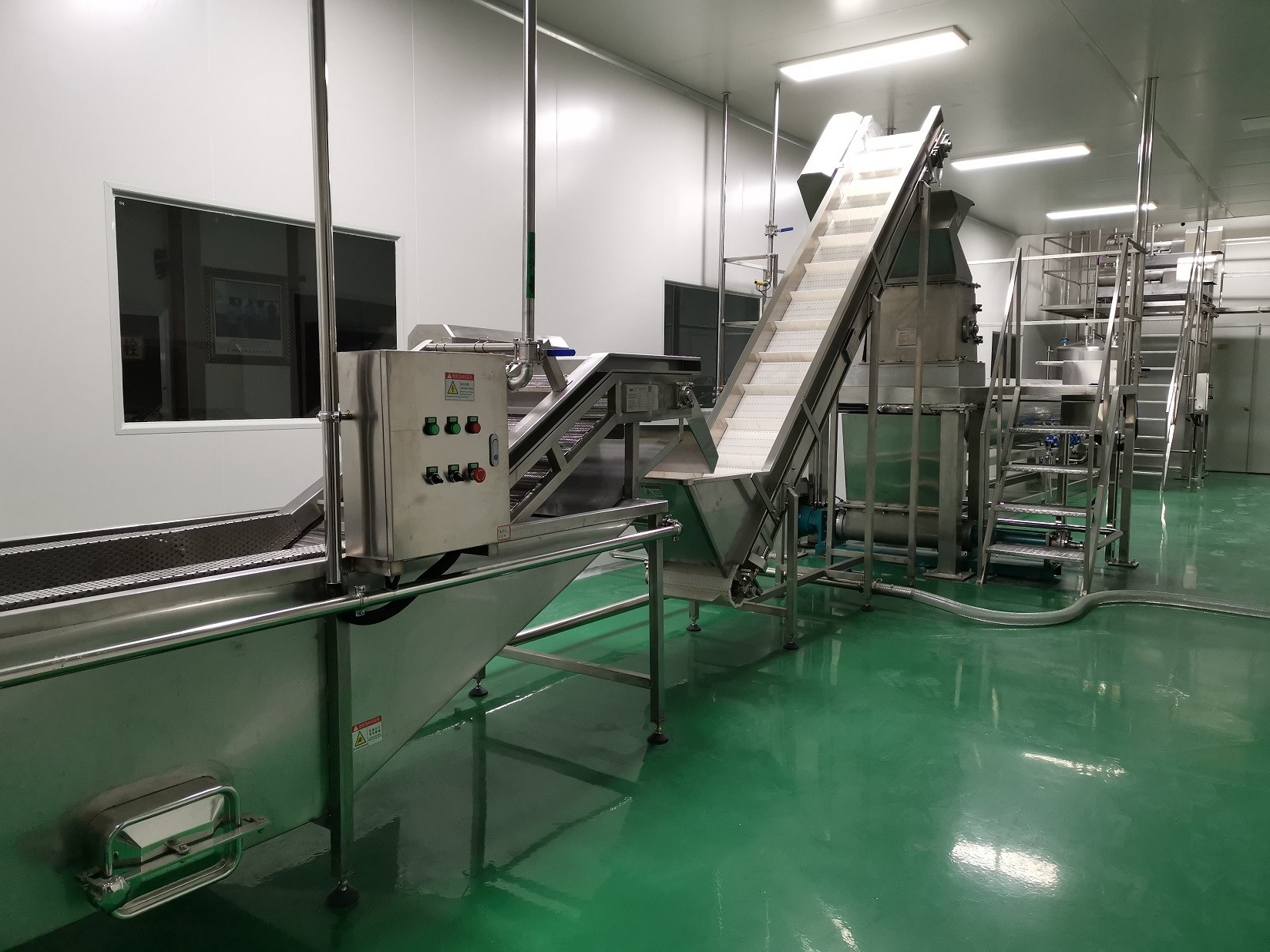

Spray brush cleaning machine



Ø Ø SUS304 stainless steel, 2mm thick

Ø Ø frame adopts 304 square steel, with specifications of 100*100*3mm

Ø Ø food grade brush,

Ø Ø delivery adopts stainless steel chain drive,

Ø Ø provides a discharge outlet to clean the hand hole;

Ø Ø bottom adopts acrylic plate seal to prevent splashing;

Ø Ø water tank is equipped with a filter device to recycle the spray water

Fruit picker



Ø Ø SUS304 stainless steel, 2mm thick

Ø Ø frame adopts 304 square steel, with specifications of 100*100*3mm

Ø Ø platform frame and guardrail adopt 40*40*3mm square steel and lay 2mm

Ø Ø power: 3kw

Ø Ø food grade engineering plastics

Rinsing machine



Ø Ø SUS304 stainless steel, thickness 2.5mm

Ø Ø frame adopts 304 square steel, with specifications of 100*50*3mm

Ø Ø provides a pull-out device;

Ø Ø provides cleaning hand opening, discharge opening, overflow opening,

Ø Ø adopts stainless steel scraper hoist, the frame is 50*50*3mm

Ø Ø air pump: 5M3/ min

Eleveator



Ø Ø smooth scraper baffle, seepage structure;

Ø Ø adopts SUS304 stainless steel;

Ø Ø SUS304 square tube frame 50x40x3;

Ø Ø adopts chain drive mechanism;

Ø Ø control mode: automatic control and manual local control

Crusher



Ø Ø body and material contact part is SUS304 stainless steel structure

Ø Ø fusion Italian technology, multiple groups of cross blade structure, can effectively improve the extraction rate of original sauce

Ø Ø is used to break the raw fruit into 5-10mm small particles, which is convenient for the next process

Ø Ø to reduce nutrient loss of fruit, a cold crushing process is designed at room temperature.

Platform

Ø Ø Q235 rack

Ø Ø SUS202 Stainless steel fence

Ø Ø SUS202 Stainless steel anti-sliding plate

Buffer tank



Ø Ø SUS304 stainless steel;

Ø Ø liquid level control;

Ø Ø single-layer upper and lower cone bottom structure;

Ø Ø internal weld polishing 240 mesh, external 2B primary colour plate;

Ø Ø high and low level control;



Screw pump



Ø Ø food grade rubber stator;

Ø Mechanical seal with propeller

Ø Ø outlet flange connection;

Ø Ø lift 36m;

Ø Ø frequency conversion speed regulation, outlet pressure 1.2mpa



Double threshing and seed removing machine



Ø Ø horizontal structure, double channel station;

Ø Ø removes the core and impurities in fruit and vegetable pulp effectively;

Ø Ø is applied to process pulping of various broken fruits and vegetables

Ø Ø blade speed is stepless adjustable;

Ø Ø mesh diameter is 0.8mm- 1.2mm, each set is used to remove the seed in any. At the same time, the refined product is fine and uniform.

Ø Ø drive adopts frequency conversion speed regulating motor;

Ø Ø beater body is made of SUS304 stainless steel.



Waste conveyor



Ø Ø spiral structure



Prepare pot



Ø Ø liner thickness: 3mm;

Ø Ø SUS304 stainless steel;

Ø Ø pulp stirring;

Ø Ø exterior surface adopts 2B plate;

Ø Ø high and low level control;

Ø Ø spherical head structure, including manhole, aseptic air filter, cleaning ball, water inlet, material inlet and outlet, visual mirror, sampling valve, breathable cap and circulation opening

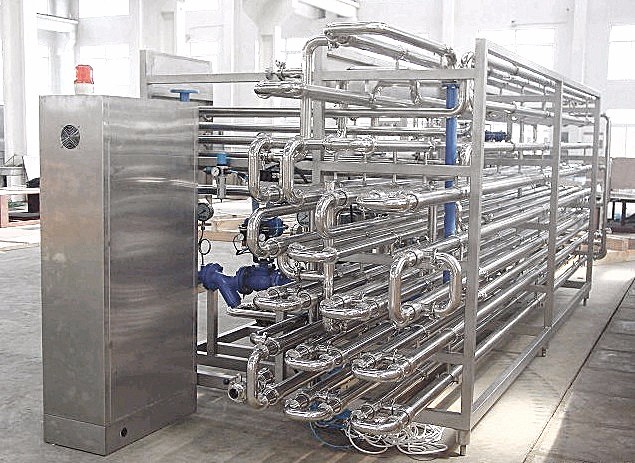

UHT tube sterilizer



Ø Ø manufactured using edker patent technology, a leading sterilizer for high viscosity materials in China.

Ø The tube sterilizer is mainly composed of tube (multi-tube) heat exchanger, stepless variable transmission pump, retener, closed bucket, plate heat exchanger, controller and so on.

Ø The equipment process is as follows:

Ø Ø material inlet temperature: 40~50;

Ø Ø outlet temperature: 20-90 adjustable;

Ø Ø sterilization temperature adjustable 85~121;

Ø Ø sterilization time: 15S;

Ø Ø cooling water temperature <18 ℃;

Ø Ø system main characteristics are as follows:

Ø Ø cooling water consumption :50 t/h, water temperature is less than 20 ;

Ø Ø steam consumption :1200KG/H;

Ø Ø compressed air;0.3 m3 / min.

Ø Ø installed capacity: 3.3kW;

Ø Ø system pressure: about 50BAR;

Ø Ø positive displacement rotor pump is a group, the speed is adjustable;

Ø Ø CIP pump;

Ø Ø front material buffer tank with stirring;

Ø Ø hot water heating plate, closed water tank with sterilization pump

Ø Ø independent control cabinet, IP protection, HMI PLC automatic control

3 In 1 Filling Fresh Orange Making Machine Sus 304 Stainless Steel 1

3 In 1 Filling Fresh Orange Making Machine Sus 304 Stainless Steel 2



3 In 1 Filling Fresh Orange Making Machine Sus 304 Stainless Steel 3



3 In 1 Filling Fresh Orange Making Machine Sus 304 Stainless Steel 4
