Pectin Extraction From Citrus Peels After Citrus Juice Processing Plant 1t/H

Place of Origin china
Brand Name sss
Model Number customzied
Minimum Order Quantity 1
Price usd3,000,000
Packaging Details standard export packing
Delivery Time 120
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Pectin Extraction From Citrus Peels Input Wet Citrus Peels
Output Pectin Powder Capacity 1t/h Or As Required
Product Packing Bag Feature Turnkey Project
High Light

1 Ton/H Citrus Processing Plant

,

Pectin Extraction Citrus Processing Plant

,

Citrus Juice Processing Plant

Leave a Message
Product Description

Pectin Extraction From Citrus Peels After Citrus Juice Processing Plant



Pectin Extraction From Citrus Peels consists of pre-treatment unit ,post-processing unit(explosion prrof), auxilary machine set,enginnering installation, public facilities

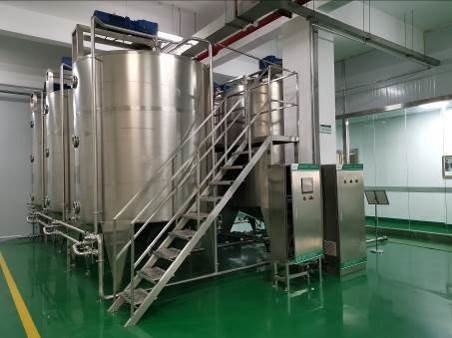

Pectin Extraction From Citrus Peels After Citrus Juice Processing Plant 1t/H 0



specification for main parts

item Brand/origin
PLC, HMI Siemens/Germany
Low voltage electric component Schneider/France
Pneumatic element(air cylinder, solenoid valve, triple) Air TAC/Taiwan
valve Liyang Sifang/China
Motor Fangli/China
pump Nanfang/China
material

Stainless steel 304 from top mill in China(Baosteel, Tisco)

All material contact parts are food grade materials



117 Decolorization tank

Ø Volume: 10000L

Ø Three-layer jacket, inner wall 3mm, jacket 3mm U-shaped coil, middle 50mm rock wool insulation,

Ø frame stirring, outsourcing 1.5mm, manhole, cleaning ball, thermometer, sampling valve, inlet and outlet, etc.

118 Heating system

Ø 100L heat preservation tank,

Ø steam valve group: filter, pressure reducing valve, regulating valve, globe valve, steam trap,

Ø plate heat exchanger: brazed plate heat exchanger 6M2

Ø Centrifugal pump: 5T/H, head 24 meters

119 Screw pump

Ø Capacity: 10T/h;

Ø Output pressure:0.6MPA

Ø Power: 3.7kw;

120 Automatic pulling plate and frame filter press

Ø Capacity: 10T/h

Ø The filter area is 120 square meters,

Ø size of the filter plate: 700*700mm,

Ø automatically pulling plate

121 Clear liquid tank

Ø Volume: 5000L

Ø Double-layer insulation, inner wall 3mm, middle 50mm rock wool insulation, outsourcing 1.5mm,

Ø paddle stirring, manhole, cleaning ball, thermometer, import and export, etc.

122 Material pump

Ø Capacity: 10T/h

Ø Head:24m

Ø Power 3KW

123 Ceramic Membrane Filter

Ø Capacity: 10T/h

Ø 100 square ceramic membrane

Ø filter precision 50nm,

Ø power 7.5kw





Company Profile

SSS Food Machinery Technology Co., LTD is a leading supplier of food processing equipment in China.We are able to provide complete turnkey project solution for intelligent processing equipment.We are mainly specialized in fruit and vegetables processing line for puree,juice,jam,dried fruit, powder,fruit wine & vinegar,fermented beverage,ect .Also the related stand-along equipment with superior quality,competitive price and professional service.SSS has a complete team from R&D design, production, quality inspection,process guidance, with more than 20 years’ professional experience in this field.

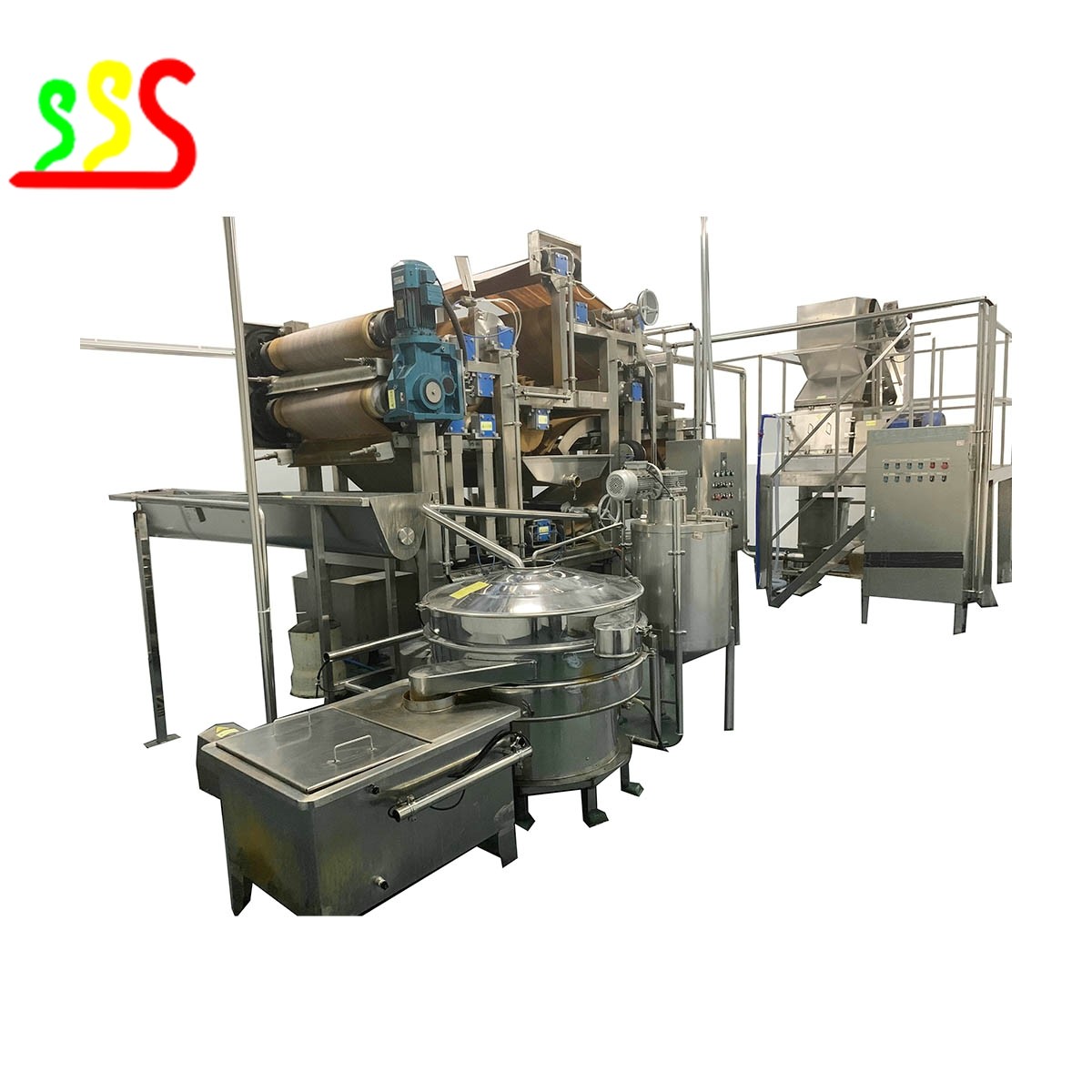

Pectin Extraction From Citrus Peels After Citrus Juice Processing Plant 1t/H 1
