Industrial Type 3600-8000pcs/H 8-10inch Tortilla Production Line
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 8000pcs/H Tortilla Production Line,Industrial Tortilla Production Line |
||
|---|---|---|---|
Product Description

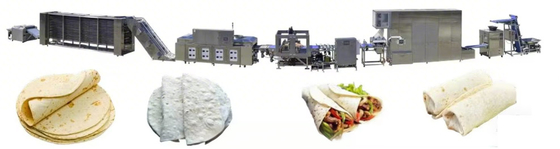

Industrial Type 3600-8000pcs/H 8-10inch Tortilla Production Line
Main feature & parameter
1. Humanized design and compact structure;
2. Microcomputer control, convenient operation;
3. Wide range of applications, and can make products of different sizes;
4. Flexible collocation, can be freely customized according to customer needs;
5. It is safe and reliable, and food contact parts are made of high-quality stainless steel and food-grade polymer materials.
Structure
The main operating steps of this machine are: flour mixing,divider,dough proofing,
dough pressing, baking, cooling, stacking and packing.
| Machine Name | Size(mm) | Power | Description |
| Dough Conveyor | 910X650X1050 | 0.24KW | It can convey 2-3 rows dough ball with adjustable distance. |
| Presser | 3200X1390X1915 | 34.5KW | Cycles in a minute: 20 - 35 times? Capacity for each size: 3600 pcs/hour for 25cm (10”) Frame: stainless steel, heavy duty Working temperature: 0 - 300℃ Servo tracking continuous pressing Teflon belt runs at constant speed Size of press heating plate: 65x65cm 4 pcs /time for 25cm (10") The pressing time is closely related according to the size of the tortilla and the temperature of heating plate. The temperature can be controlled separately, and the temperature error is ±3℃. The machine frame is made of stainless steel, and the pressing area is heavy duty steel plate with painting treatment |
| Oven | 5150X1480X1350 | 2.2KW | The oven has three layers in total. The upper two layers are stainless steel heating chain plate, and the lowest layer is stainless steel conveyor mesh belt. Each layer of heating chain plate is equipped with 4 sets of gas heating system, which can be controlled separately. The heating chain plate and bottom mesh belt can be adjusted to meet the baking time which is required for different tortillas. It is equipped with electronic ignition system, flame detection and alarm system. The machine frame is made of stainless steel. Isolation system: critical parts covered with stone wool Frame : stainless steel, heavy duty Drive system : by motor Continuous system: yes Baking time: 30 - 90 seconds |
| Cooling line | 8700X1080X1500 | 1.5KW | 5-layer and 6-metre high cooling system, each layer can individually control the conveying speed, the top is equipped with cooling fan. |
| Electric cabinet | 700X550X1800 | 0.15KW | |
| Chiller | 840X620X1060 | 3.6KW | |
| Counter & Stacker | 3100X1240X1010 | 0.74KW | Multiple cylinders are combined with the detection and counting system to control the number of stacked tortillas, the stacked quantity can be adjusted. |
