1-220L Aseptic Big Bag Filling Machine for fruit pulp/concentratc

  • 1-220L Aseptic Big Bag Filling Machine for fruit pulp/concentratc
Place of Origin China
Brand Name sss
Model Number customized
Minimum Order Quantity 1
Price 32307
Packaging Details standard exporting package
Delivery Time 30
Payment Terms L/C, T/T
Supply Ability 10set/m

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Aseptic Big Bag Filling Machine Filling Range 1-220L
Type Semi-automatic Capacity 1t/h
Leave a Message
Product Description

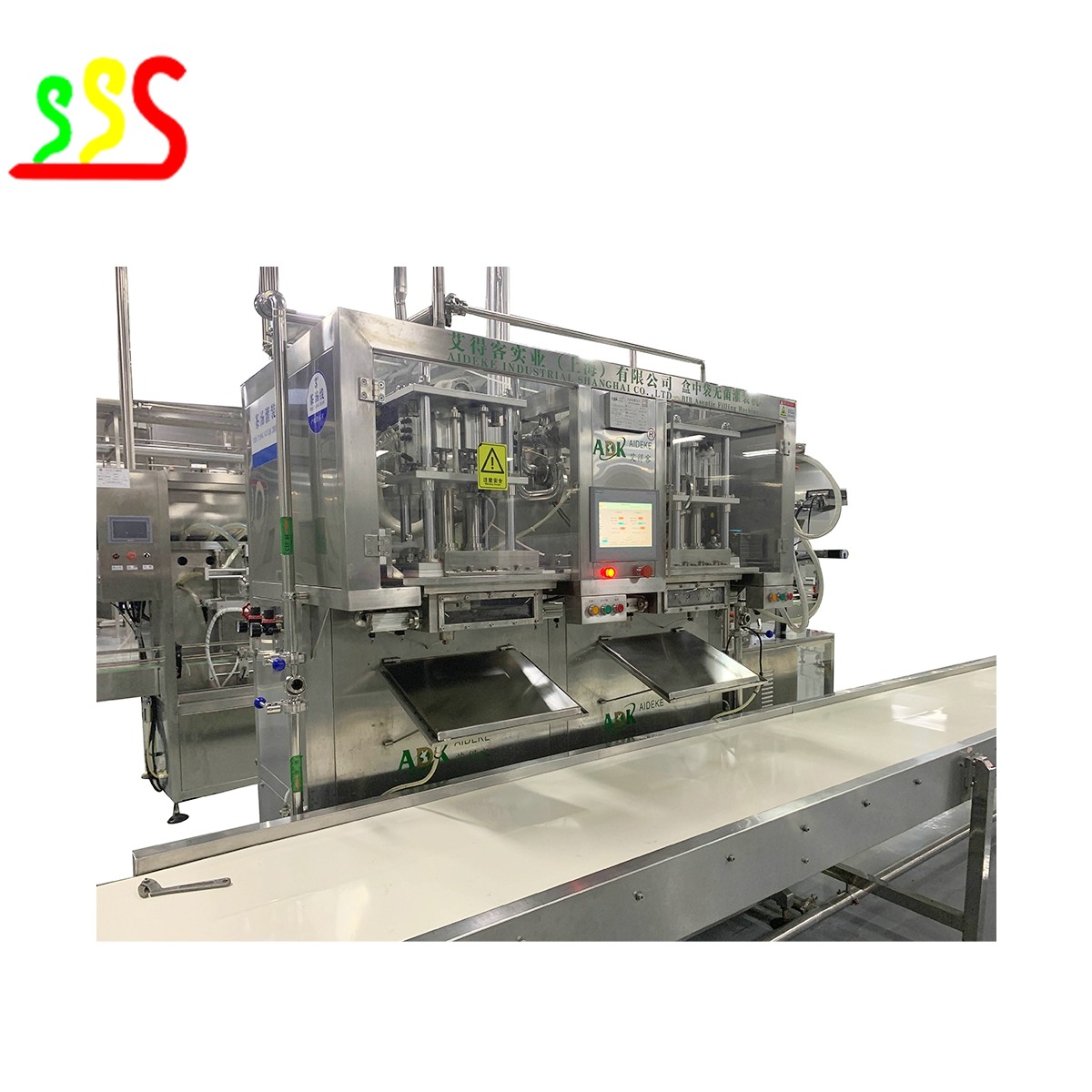

Aseptic Big Bag Filling Machine



Aseptic filling machine

Ø Output: 1-2T/h

Ø Online control with front-end sterilizer to realize CIP and SIP;

Ø This aseptic filling machine is mainly composed of aseptic filling head (1 piece), operating system, man-machine control system, weight measurement and workbench. The packaging bag adopts aluminum-plastic composite aseptic bag, and the whole process is carried out in a sterile environment. The main features are as follows:

Ø Human-machine interface control, real-time display and control of weight;

Ø Equipped with manual and automatic control systems;

Ø Automatic weight measurement deviation is 1-2%;

Ø Can be linked with the sterilizer to do CIP and SIP;

Ø To achieve the purpose of aseptic filling, the final product can be stored for 18 months at normal temperature;

Ø Filling range: 1L~220L

Ø The unique design of the filling chamber avoids dripping of condensed water;

Ø Working temperature: +99℃

Ø Independent control system; Siemens PLC, touch screen

Ø Siemens PLC S7-200;

Ø Siemens touch screen;

Ø Temperature sensor;

Ø Dimension:2400*1200*1800mm

Ø Weight:400kgs

1-220L Aseptic Big Bag Filling Machine for fruit pulp/concentratc 0
